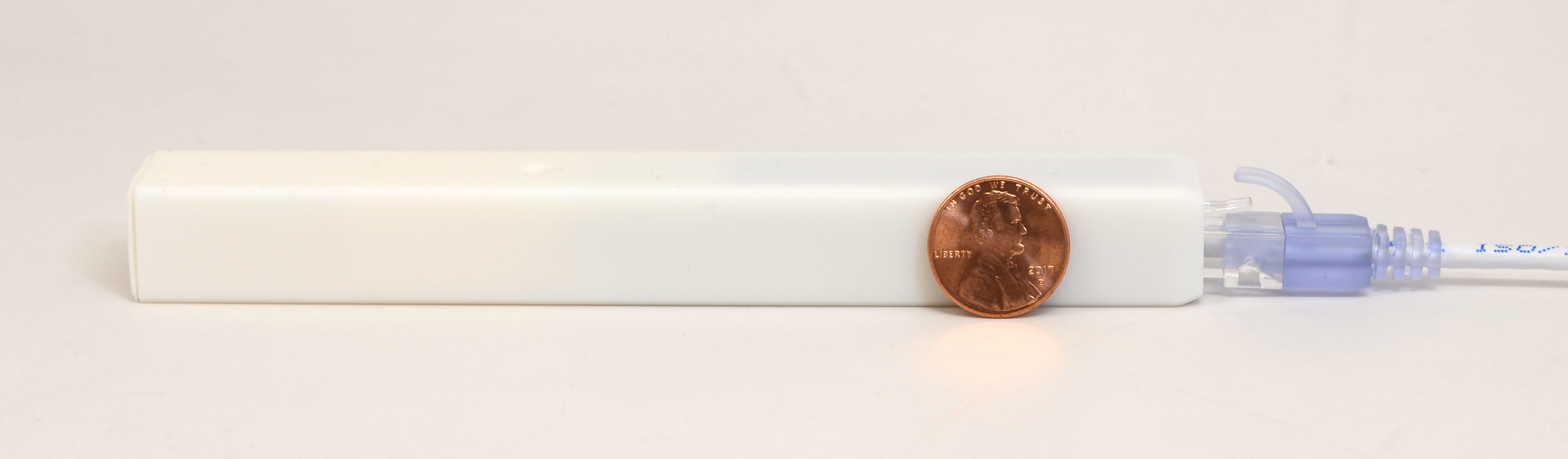

microSAM Total Field Magnetometer

Twinleaf has created a breakthrough, ultra-compact optical magnetometer with an integrated control unit. microSAM is a microfabricated total field optical magnetometer. Its small size and low power consumption enable a wide range of new precision magnetometer applications. Now in its fourth generation, microSAM features true centimeter-scale sensor size and true isotropic measurements (no dead angles).

Features

• Pulsed total magnetic field sensor
• Optically pumped alkali metal
• No dead zones
• Sensitivity: 20 pT/Hz^1/2
• Bandwidth: 1000 Hz
• Heading error: ±10 nT
• Mass: 100 g
• Power: 1 W (3.5-5V)
• Volume: ⌀1.2×10 cm
• Field range: 10,000 to 100,000 nT

Interface

• Standard: RS422 COMM-TDS interface
• Option: Ethernet interface
• Option: TTS interface

Ordering

• microSAM: $8000. Standard with RS422 TDS interface and USB adapter.
• COMM-ETH: +$500. Cost to switch communication module to ethernet.
• microSAM-TTS: core sensor module, inquire for price.
