CSB Current Supply, Bipolar

CSB provides very low noise programmable current. It offers three independent channels of output current referenced to ground. Thanks to its internal galvanic isolation, it does not create a ground loop between the computer and the current sink. It offers dc currents as well as very slow modulations of a few Hz. Thanks to its grounded output, it is easy to sum other currents or modulations with the output using a simple SMA tee.

• CSB-10: ±10 mA, TBD pA/Hz^1/2
• CSB-50: ±50 mA, TBD pA/Hz^1/2
• CSB-200: ±250 mA, TBD pA/Hz^1/2 (max simultaneous 3-ch @ 200 mA)
• Current drift: <10 ppm/°C
• Compliance voltage: >1 V

Interface

• Current output: SMA
• Current resolution: 20 bits (18 bits real + 2 bits dithering)
• Power: +5 V from USB
• Serial ports
  • USB-C (driverless USB-serial port)
  • RJ-45 8p8c connector: Power, serial, and synchronization
• Software support
  • CSB command reference
  • Twinleaf I/O tools

Performance

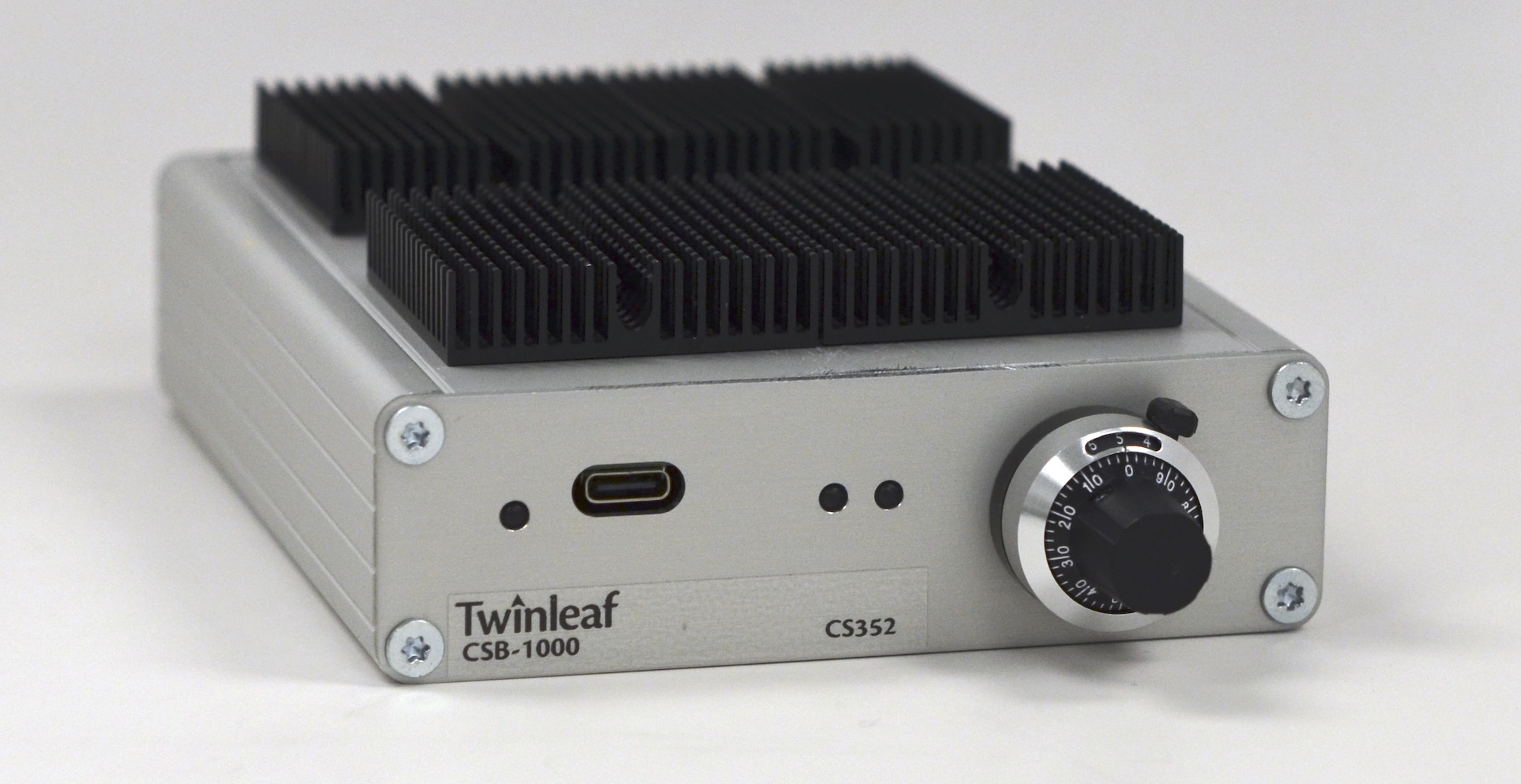

Images

Firmware

Firmware update: CSB-R10-firmware-2019-12-05-442ab8.bin

Ordering

• CSB-10, Low noise bipolar programmable current supply, ±10 mA. $2400.
• CSB-50, Low noise bipolar programmable current supply, ±50 mA. $2400.
• CSB-200, Low noise bipolar programmable current supply, ±200 mA. $2400.
