PPMV Pulsed Pump Vector Magnetometer

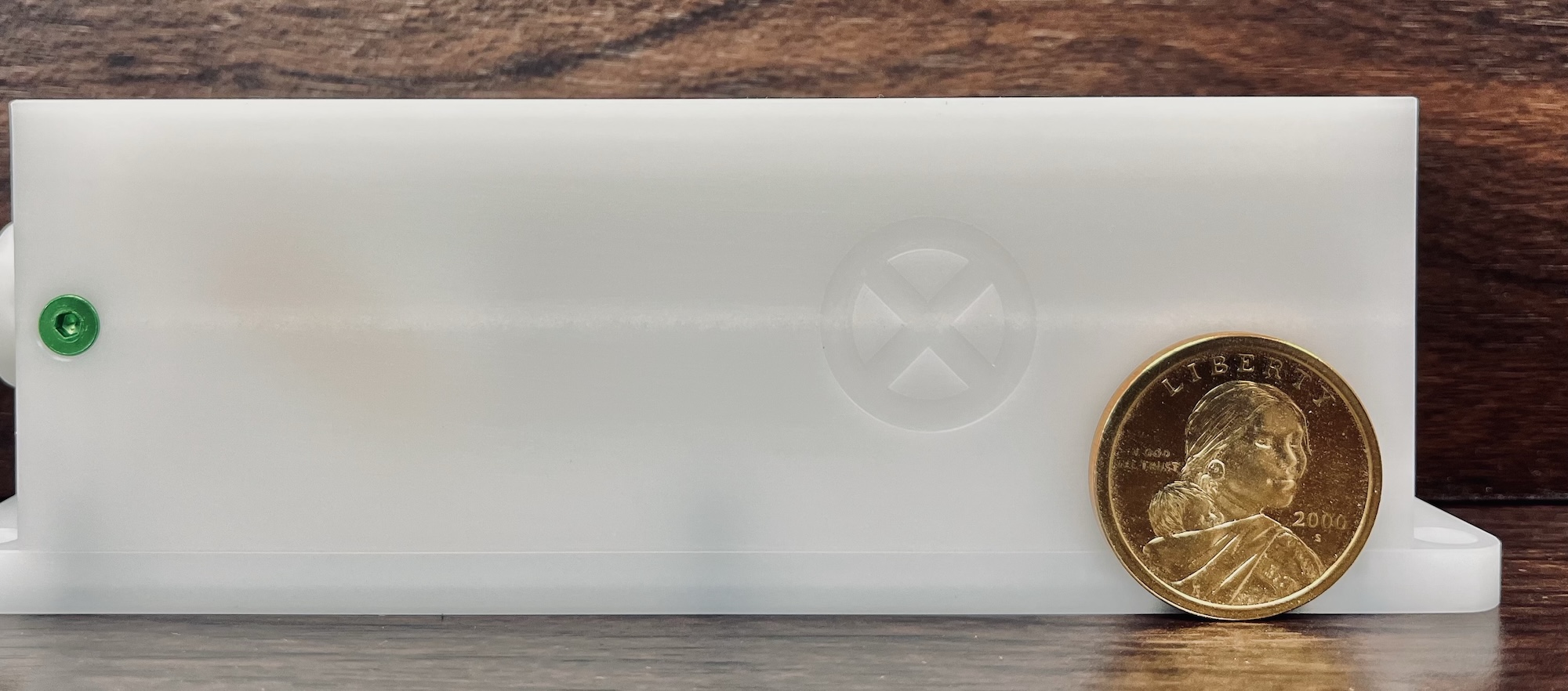

PPMV is a unique atomic magnetometer that is capable of exceptional vector field sensitivity and accuracy. The system uses a pulsed pump total field mangetometer and a vector coil to vectorize the total field measurements.
Features
- Optically pumped alkali metal (rubidium)

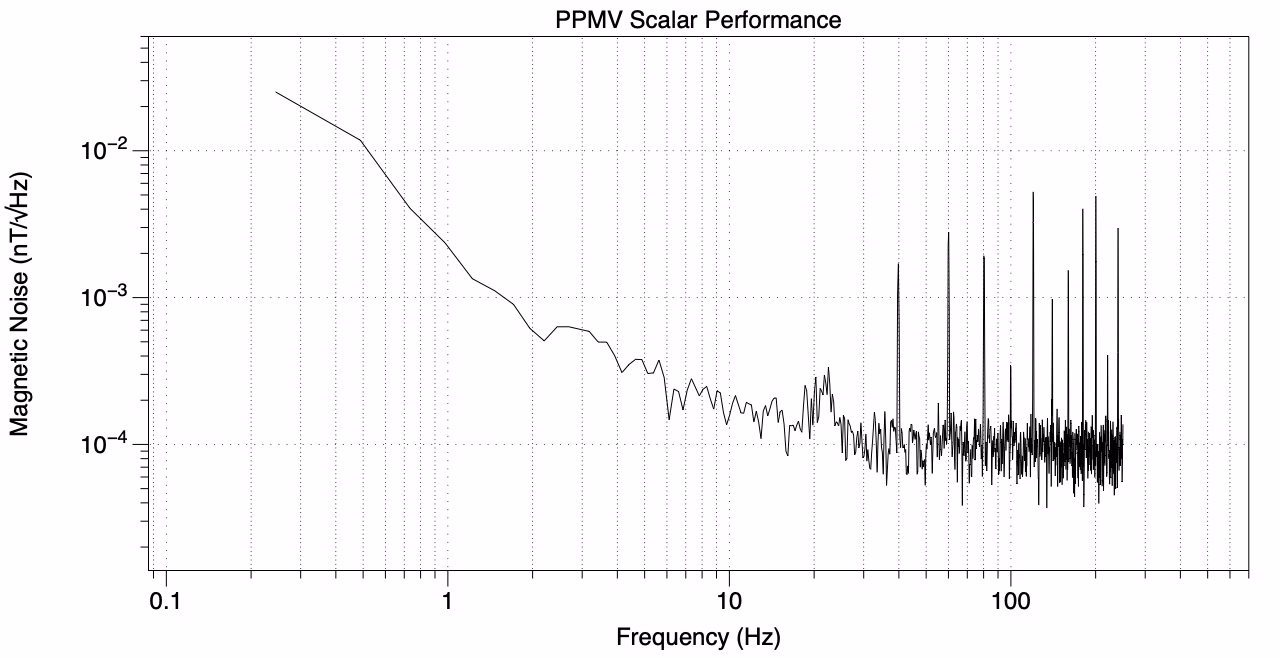

- Total field sensitivity: 0.2 pT/Hz1/2

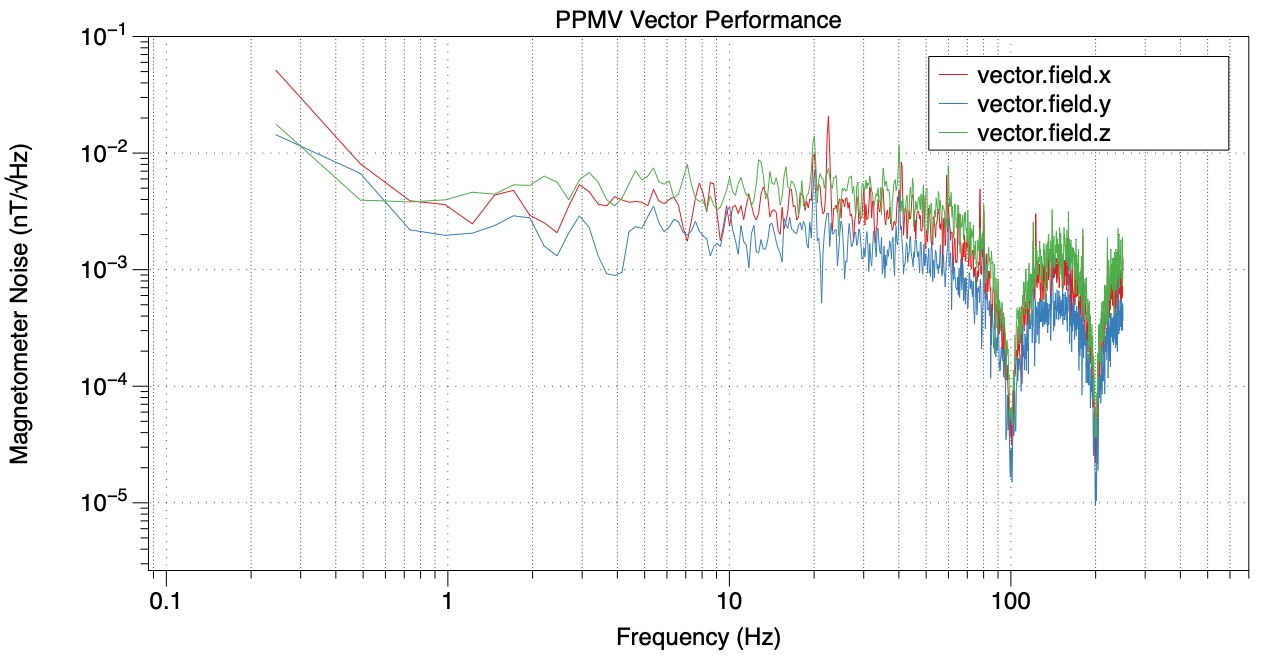

- Vector sensitivity: 2 pT/Hz1/2
- Vector sample rate: 100 Hz (200 Hz and 800 Hz on request)
- Narrow axial dead zones: <±7°
- Field range: 1–100 µT
- Slew rate: >1000 nT/ms
- Sensor volume: 13 cm x 4.2 cm x 4.2 cm
- Sensor mass: 226 g
- Control unit volume: 13 cm x 6 cm x 1.5 cm
- Control unit mass: 400 g
- System power consumption: 4 W (5V, 1A; can run from USB-C PD power source)
Interface
- USB-C
- 5 W capable port required.
- Serial data output
- RJ-45 8p8c connector: Power, LVDS Serial, LVDS Sync Clock
- Software support
Operation
Plug it in, and wait for the sensor to warm up. The status light blinks according to the sensor status:
| Code | Color | Status |
|---|---|---|
| -3 | Red/Black | Hardware Error |
| -2 | Red/Black | Low Voltage |
| -1 | Red/Black | Error |
| 0 | White/Black | Idle/off |
| 1 | Red/White | Cell heating |
| 2 | Purple/Red | Pump locking |
| 3 | Yellow/Red | Probe locking |
| 4 | Blue/White | Lasers locked; no signal |
| 5 | Green/White | Operational |
The status code is also reported as the status byte in the data stream.
Ordering
PPMV-USB, $19,900. PPMV-RS422, $19,900.
