HUB-8RS422 Synchronization Hub

Features

• Synchronize 8 sensors via the RS422 sensor link
• Internal GPS antenna for location and time synchronization
• ±200 ppb master oscillator stability over temperature range
• Operating temperature: −20 °C – +70 °C
• Volume: 108×86×45 mm³
• Power consumption: 900 mW
• Mass: 400 g

Interface

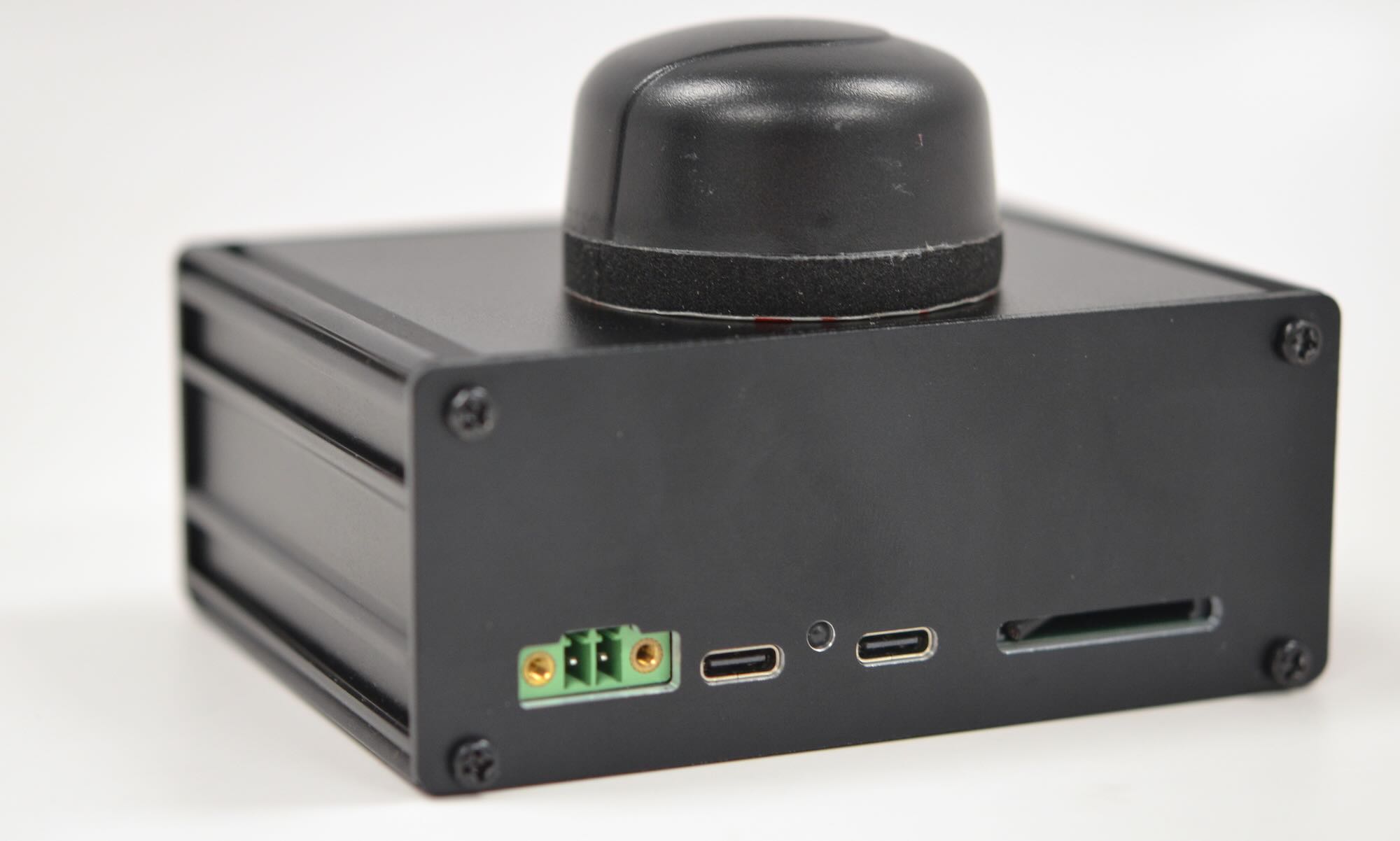

• Front
  • USB control port
  • USB power input (USB-PD +15 V)
  • SD card for data logging
• Side
  • Terminal block
    1. Power +15 V
    2. Ground

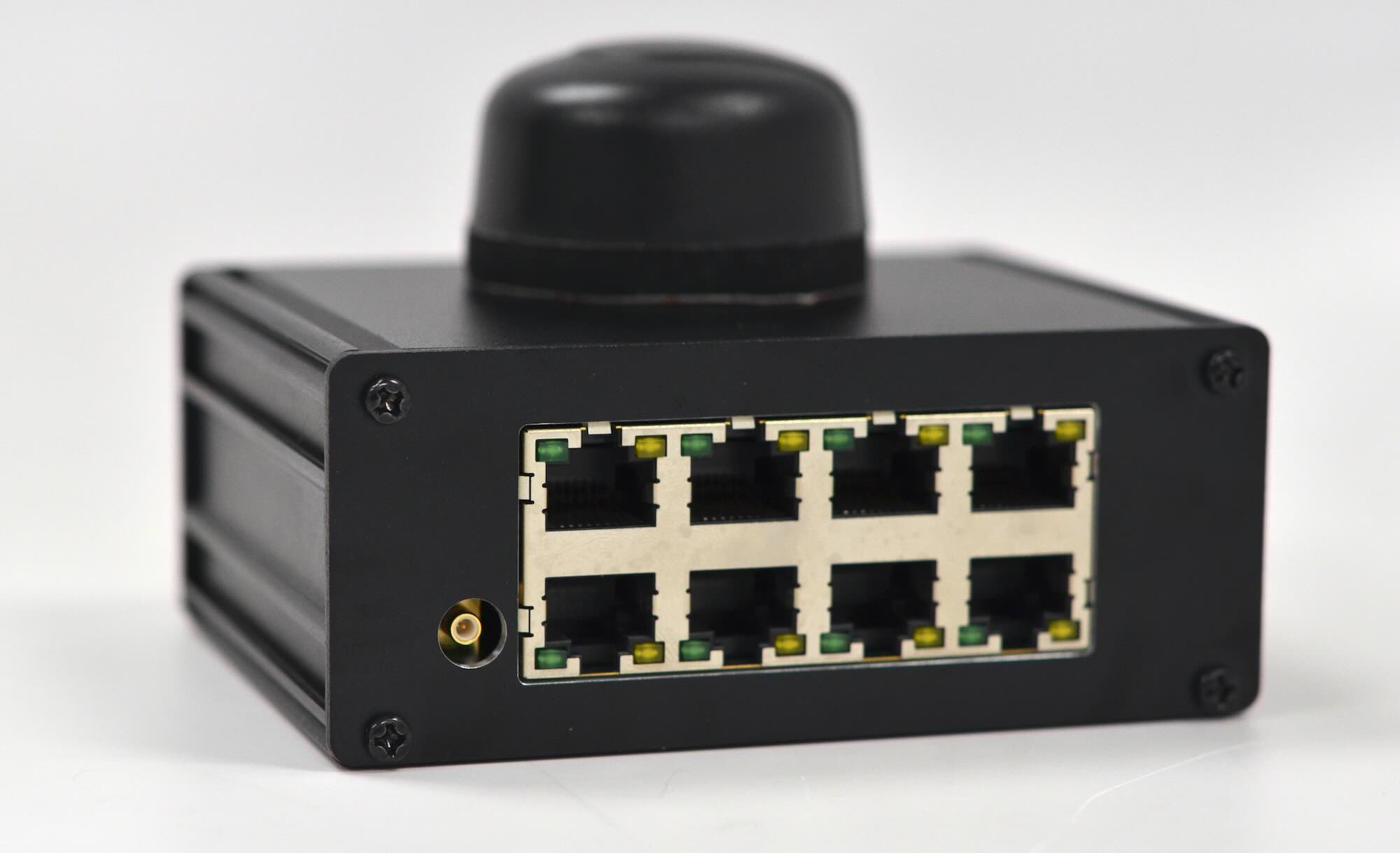

• Back
  • ×8 RS422 sensor ports
  • SMB external synchronization 3.3V PPS input

Only one power source is needed; either the terminal block on the side or the USB-PD input on the front.

Pictures

Ordering

HUB-8RS422, inquire for price.
