HUB-8TTS Synchronization Hub

Features

• Synchronize 8 sensors via the TTS sensor link
• Internal GPS antenna for location and time synchronization
• ±200 ppb master oscillator stability over temperature range
• MEMS gyroscope and accelerometer
• Barometric pressure sensor
• Operating temperature: −20 °C – +70 °C
• Volume: 67×67×16 mm³
• Power consumption: 720 mW
• Mass: 70 g

Interface

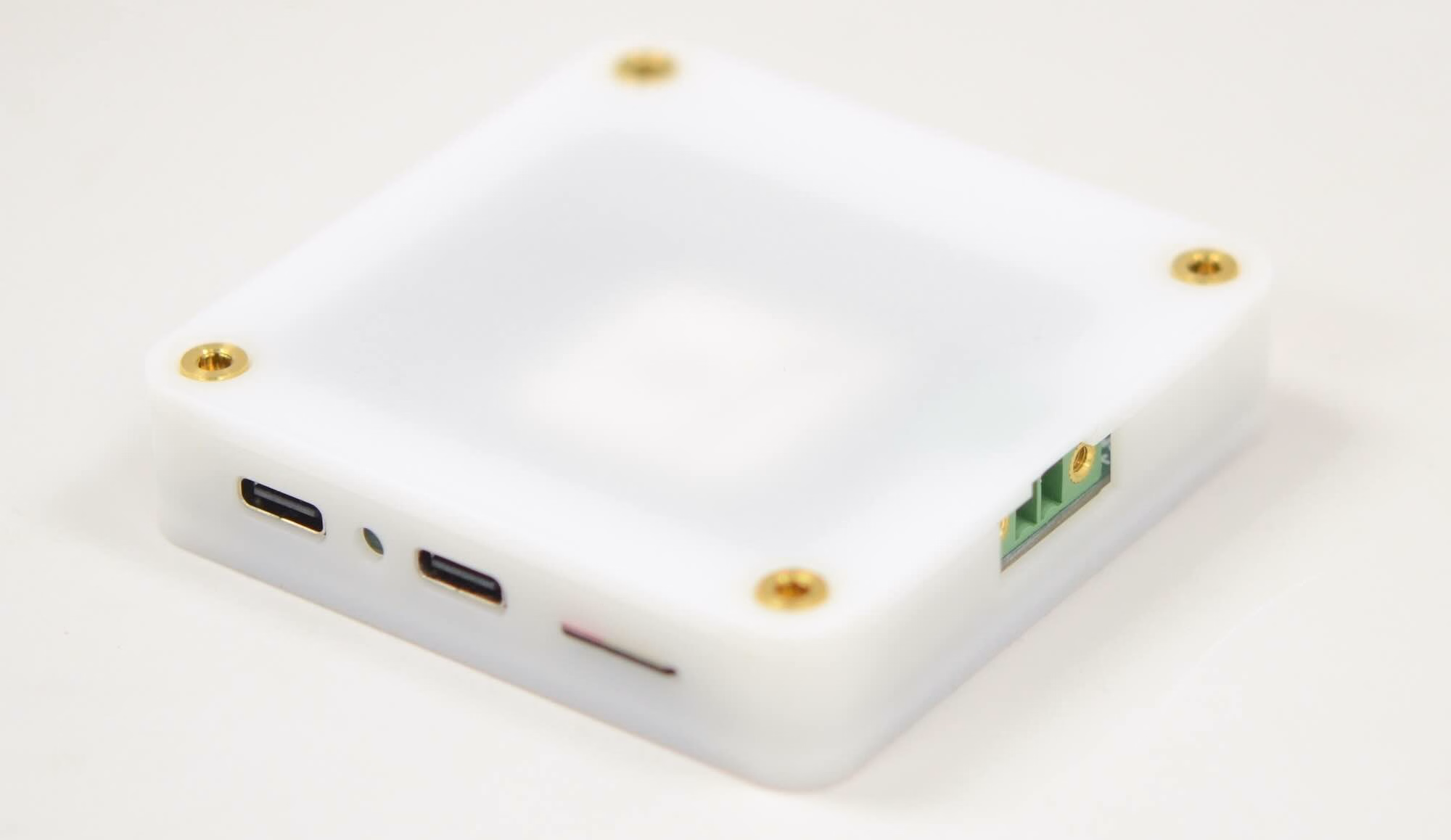

• Front panel
  • USB control port
  • Power Input: either
    • USB Power (USB-PD +15 V), or
    • Terminal Block
      1. Power +15 V
      2. Ground
  • microSD card for data logging
• Back panel
  • ×8 TTS sensor ports
  • External synchronization 3.3V PPS input

Ordering

HUB-8TTS, inquire for price.
